Although not as good as the original GuitarPro, I really like TuxGuitar. After all, it is the only usable software to produce guitar tabs and scores in Linux systems I’m aware of. But of all its shortcomings the issues I had with its sound system were the worst: The sound generation is broken quite frequently and the whole program remains silent. In this short post I’ll explain to you how to replace the internal sound generator of TuxGuitar with ZynAddSubFX for a more stable and reliable setup.

TuxGuitar configuration

tuxguitar-configuration

It’s fairly simple. Just start ZynAddSubFX and TuxGuitar right after each other. Now in TuxGuitar head to the menu entry Tools > Settings and choose the bottom tab Sound. As MIDI Sequencer choose TuxGuitar Sequencer and as MIDI Port choose ZynAddSubFX. This will wire up both programs and you can use them seamlessly from now on.

ZynAddSubFX configuration

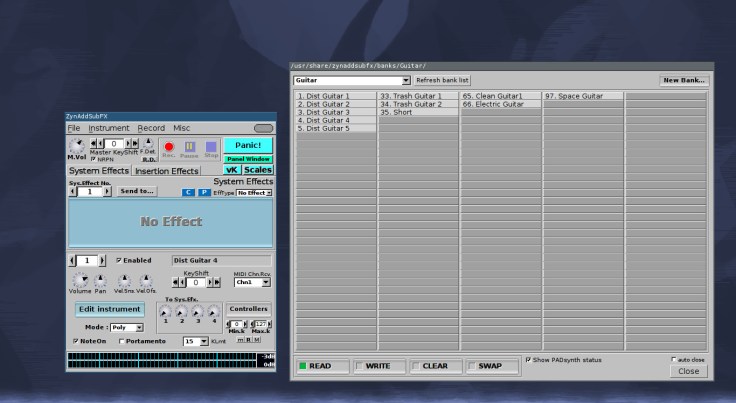

zynaddsubfx-configuration

But to generate sounds using ZynAddSubFX you have to select an instrument first. (Or you can build your own using the provided effect suite.) Check the box called Enabled and click the rectangle box to its right. In the bank selection window popping up choose whatever instrument you want to use for your particular track and you are ready to go.

JACK configuration

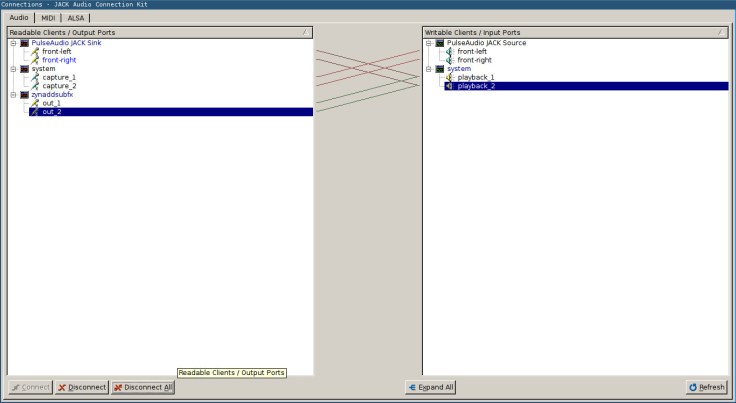

jack-configuration

If you are using JACK, click the Connect button in QjackCtl (or your preferred patchbay software) and connect the outputs of ZynAddSubFX to the playback of your system.

Notes

I’m still using version 2.4.3 of ZynAddSubFX. So no need for the new and improved interface. But if you like this project and use it quite frequently, be sure to thank its developers appropriately. 😉

If you have multiple tracks in your TuxGuitar file, you can easily add further instruments to your ZynAddSubFX generator by incrementing the part number left of the Enabled checkbox and adjusting the MIDI channel in the MIDI Chn.Rcv dropdown menu.

Tired of setting up the whole thing every time you want to use TuxGuitar? Then usethe Non Session Manager to do it with a single click.
